MM CLR 100

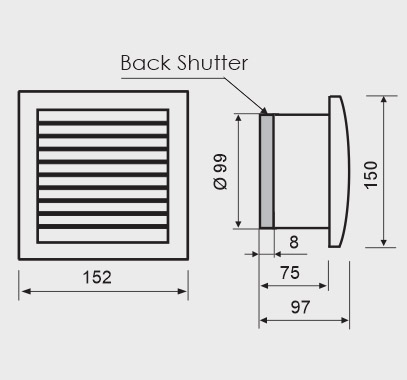

Dimension /mm/

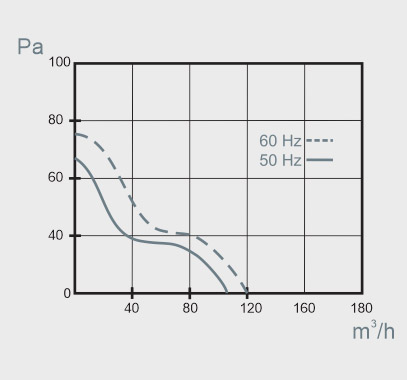

Performance curves
This type of extractor fans allows you to be equipped with the following extras
MM QB 100
| Type | Product code | Product Code with Back Shutter / Accessory / |
| MM CLQB 100 | 1825 | 1733 |
| MM CLQB 100T | – | 0613 |
| MM CLQB 100HT | – | 0637 |
| MM CLQB 100LT | – | 0620 |
| MM CLQB 100LED | – | – |
MM QE 100
| Type | Product code | Product Code with Back Shutter / Accessory / |
| MM CLQB 100 | 1825 | 1733 |
| MM CLQB 100T | – | 0613 |
| MM CLQB 100HT | – | 0637 |
| MM CLQB 100LT | – | 0620 |
| MM CLQB 100LED | – | – |
MM QI 100
| Type | Product code | Product Code with Back Shutter / Accessory / |
| MM CLQB 100 | 1825 | 1733 |
| MM CLQB 100T | – | 0613 |
| MM CLQB 100HT | – | 0637 |
| MM CLQB 100LT | – | 0620 |
| MM CLQB 100LED | – | – |

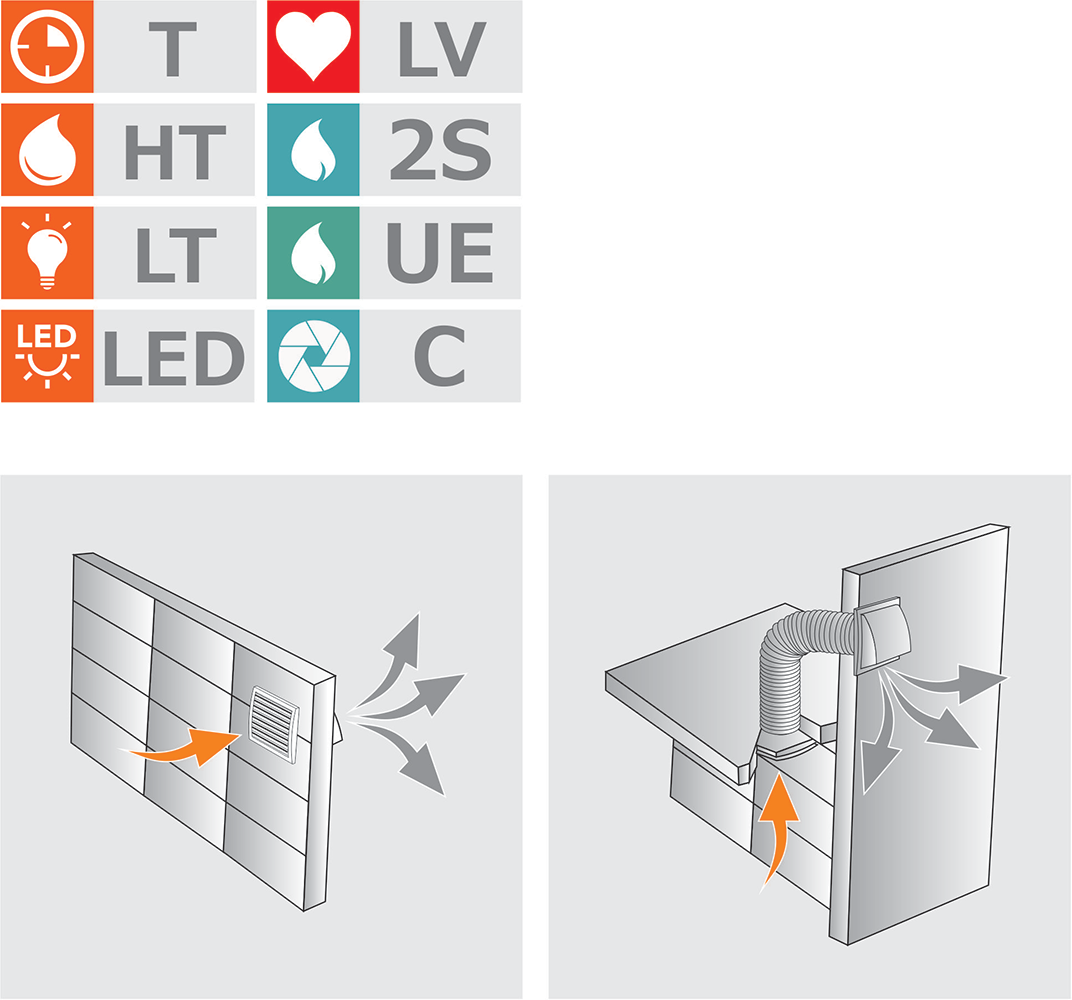

Legend
| MM CLQ | Series name |
| 100 | Size |
| T | Timer |
| HT | Humidistat & Timer |
| LT | Light relay & timer |
| LED | Led light |
| LV | Low voltage fan 12V |
| UE | Noiseless – Energy efficient |
| 2S | 2 speed fan |
| C | Back Shutter /Accessory/ |
 |
Products without a code are custom made |
