MM Q 120

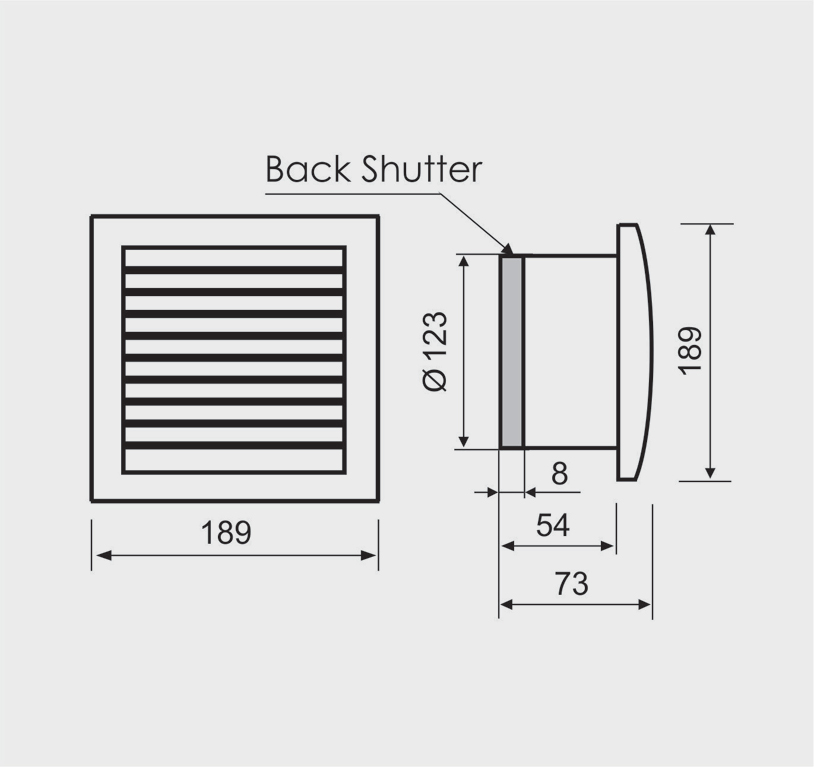

Dimension /mm/
Performance curves
Technical characteristics

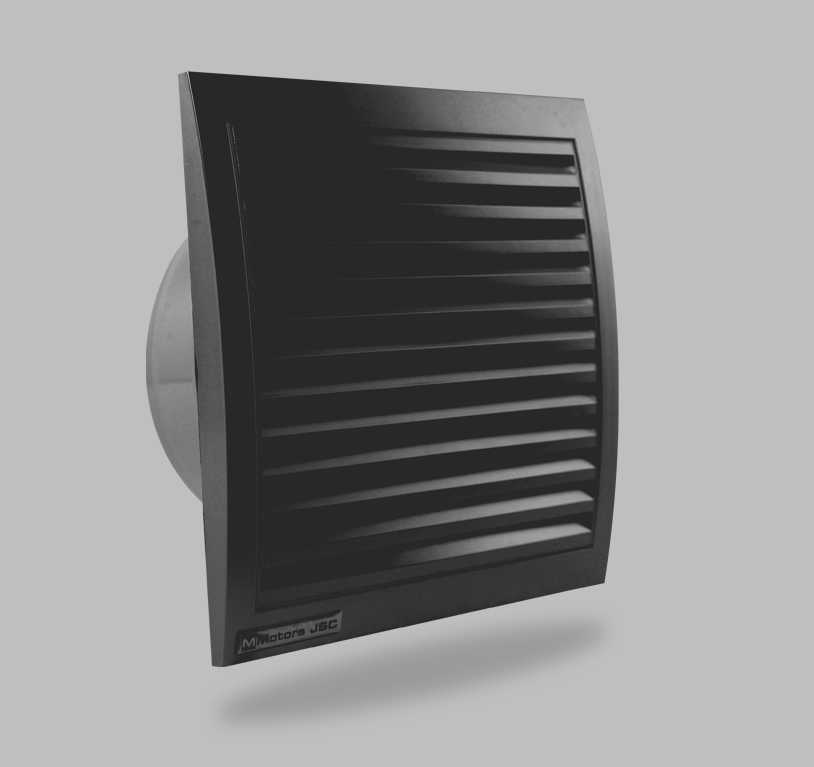

MM QB 120
| Type | Product code | Product Code with Back Shutter / Accessory / |
| MM QB 120 | 1856 | 1863 |
| MM QB 120T | – | 0750 |
| MM QB 120HT | – | 0774 |
| MM QB 120LT | – | 0767 |
| MM QB 120LED | – | – |

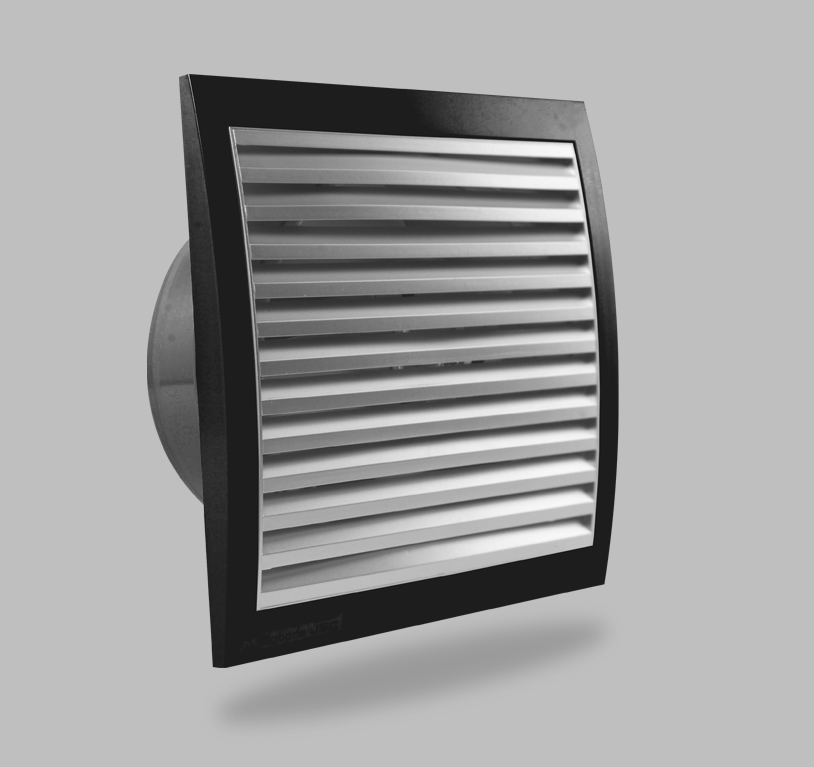

MM QE 120
| Type | Product code | Product Code with Back Shutter / Accessory / |
| MM QBI 120 | 1948 | 1955 |
| MM QBI 120T | – | 4314 |
| MM QBI 120HT | – | 7155 |
| MM QBI 120LT | – | 4321 |
| MM QBI 120LED | – | – |

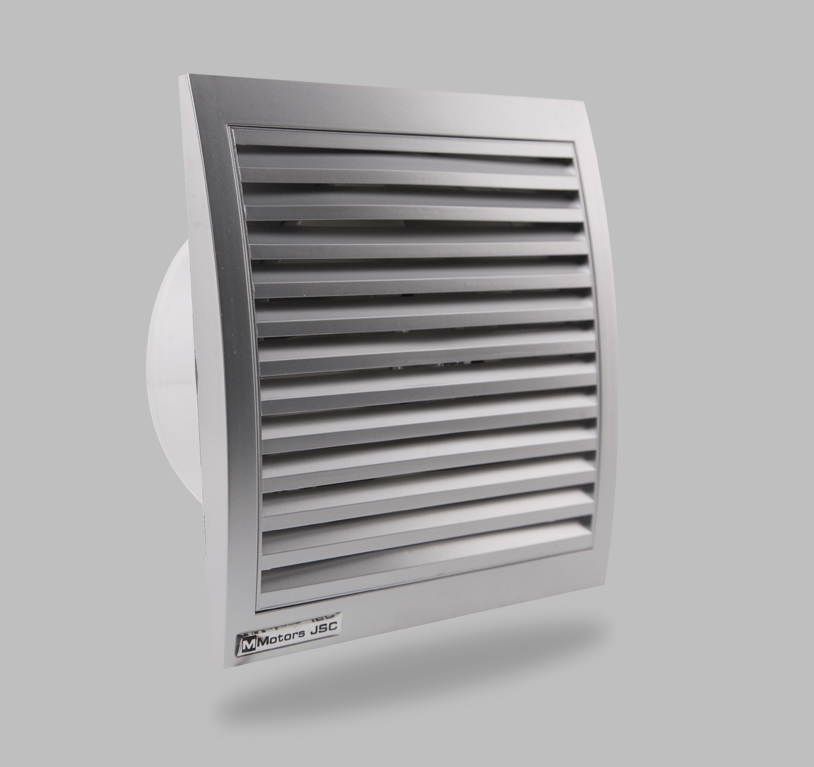

MM QI 120
| Type | Product code | Product Code with Back Shutter / Accessory / |
| MM QI 120 | 1535 | 1528 |
| MM QI 120T | – | 0675 |
| MM QI 120HT | – | 0699 |
| MM QI 120LT | – | 0682 |
| MM QI 120LED | – | – |
Legend
| MM Q | Series name |
| 120 | Size |
| T | Timer |
| HT | Humidistat & Timer |
| LT | Light relay & timer |
| LED | Led light |
| LV | Low voltage fan 12V |
| UE | Noiseless – Energy efficient |
| 2S | 2 speed fan |
| C | Back Shutter /Accessory/ |
 |
Products without a code are custom made |
