MM Q 150

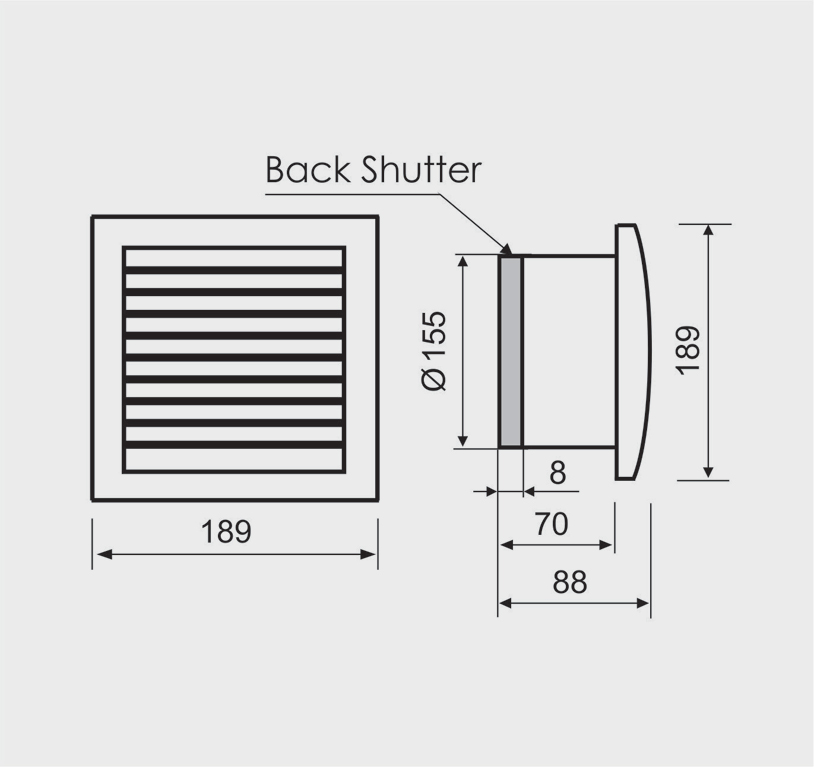

Dimension /mm/

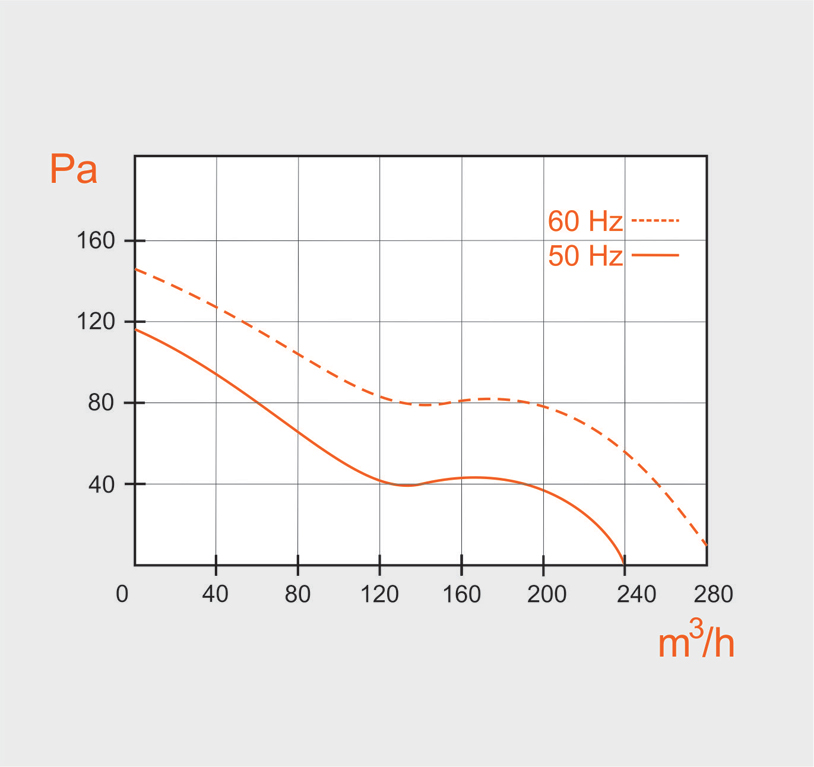

Performance curves
Technical characteristics
MM QB 150
| Type | Product code | Product Code with Back Shutter / Accessory / |
| MM QB 150 | 1870 | 1887 |
| MM QB 150T | – | 0811 |
| MM QB 150HT | – | 0835 |
| MM QB 150LT | – | 0828 |
| MM QB 150LED | – | – |
MM QBI 150
| Type | Product code | Product Code with Back Shutter / Accessory / |
| MM QBI 150 | 1962 | 1979 |
| MM QBI 150T | – | 4406 |
| MM QBI 150HT | – | 4420 |
| MM QBI 150LT | – | 4413 |
| MM QBI 150LED | – | – |
MM QI 150
| Type | Product code | Product Code with Back Shutter / Accessory / |
| MM QI 150 | 1542 | 1559 |
| MM QI 150T | – | 0781 |
| MM QI 150HT | – | 0804 |
| MM QI 150LT | – | 0798 |
| MM QI 150LED | – | – |
Legend
| MM Q | Series name |
| 150 | Size |
| T | Timer |
| HT | Humidistat & Timer |
| LT | Light relay & timer |
| LED | Led light |
| LV | Low voltage fan 12V |
| UE | Noiseless – Energy efficient |
| 2S | 2 speed fan |
| C | Back Shutter /Accessory/ |
 |
Products without a code are custom made |
